Products > Cargo wagons > Wagon typ S

Use:

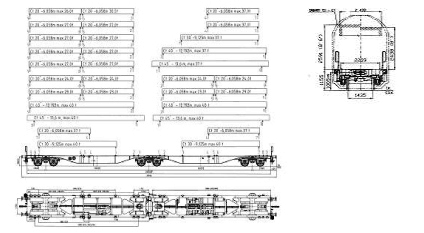

The hinge-connected flat wagon Sggmrss 90 with three two-axle bogies is intended for
transportation of containers 20, 30, 40, 45 and swap bodies 6.050 8.150 m or 9.125
9.300 m, 12.192 m and 13.600 m long. The wagon consists of two units, connected in
the middle with a hinge. Every wagon unit is equipped with 18 hinged fixing elements to
secure the transported containers or swap bodies. Increased security of transported goods
is provided by special elements which prevent the doors of the container on wagon from
opening. Maximal loading capacity of the wagon, while observing the load scheme, is 106 t.
